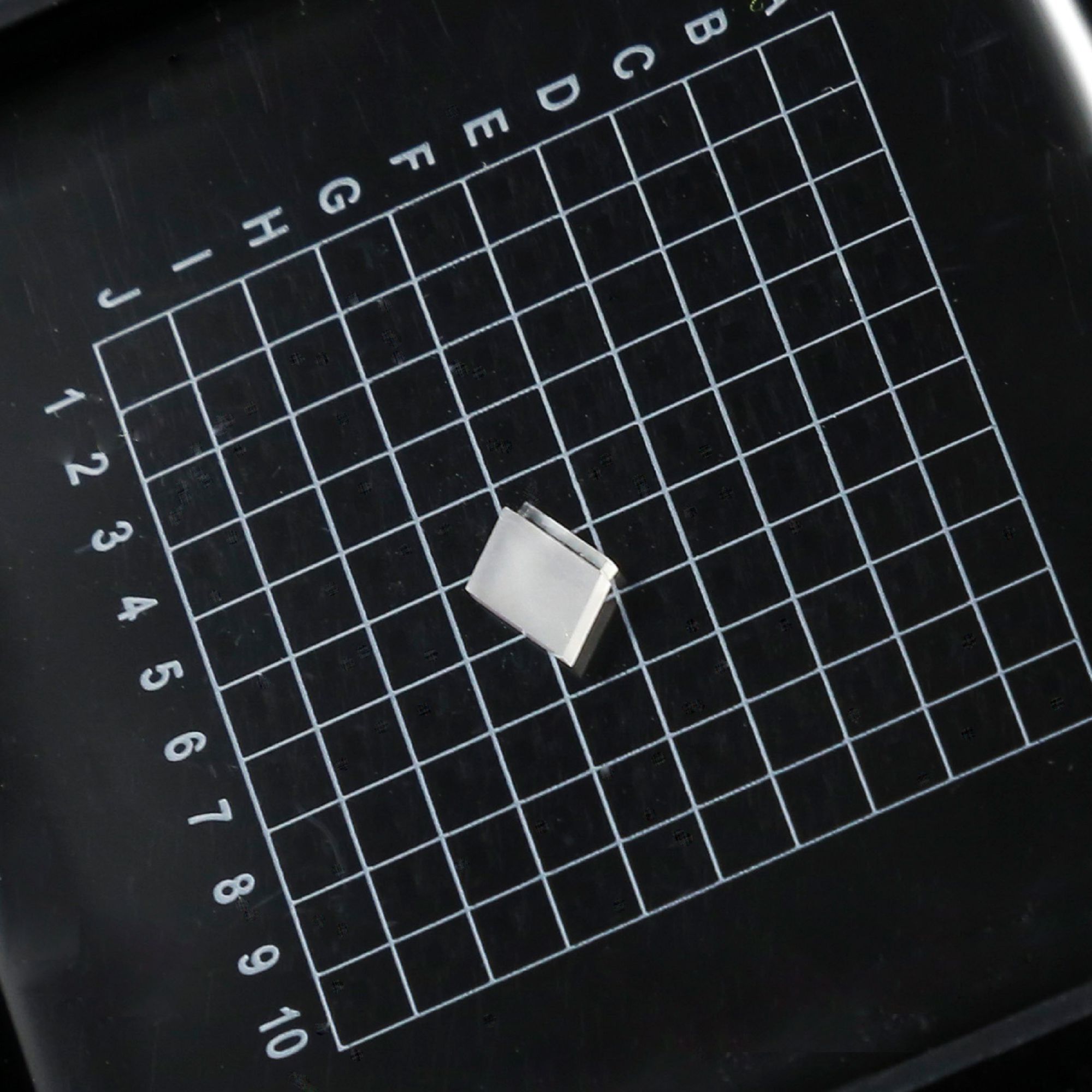

Future Optics‘ 4 CH LWDM R-B 1100 Mux Block is a LWDM EML Tx Block to act as a Mux optical sub-assembly for Tosa module, working at red-band from 1295.56 to 1309.14 nm and matching with 1.1 mm pitch LD or LD array, which is integrated inside the transmitting end of transceivers to combine 800GHz spacing 4 channels from lasers. This device adopts TFF technology and Free-Space technology, inside the device adjacent signal channels are cascaded by parallel beam with the zerodur based filters, thus the reliability is significantly improved, offering high precision of beam parallel and wider operation temperature range.
Future Optics' 4 CH LWDM R-B 1100 Mux Block is a LWDM EML Tx Block to act as a Mux optical subassembly for Tosa module, working at red-band from 1295.56 to 1309.14 nm and matching with 1.1 mm pitch LD, which is integrated inside the transmitting end of transceivers to combine 800GHz spacing 4 channels from lasers. This device adopts TFF technology and Free-Space technology, inside the device adjacent signal channels are cascaded by parallel beam with the WMS-15 based filters, thus the reliability is significantly improved, offering high precision of beam parallel and wider operation temperature range.
Features:
● Extremely high precision of beam parallel
● Extremely low insertion loss: maximum value 1.0dB
● Exceptional theral reliability and stability
● Wide pass band of 1.4 nm
● Wide operating temperature range
● Telcordia GR-1221/1209-CORE Compliant
Applications:
● 100G CFP/CFP2/CFP4/QSFP-28 transceivers
● 200/400G transceivers
● Other high-speed transceivers
● Science and lab
Specifications:
| Parameters | Unit | Specifications |
| Operating wavelength range | nm | 1260~1360 |
| Channel center wavelength | nm | 1295.56, 1300.05, 1304.58, 1309.14 |
| Pass band | nm | ±1.4 |
| Ripple over pass band | dB | 0.4 |
| Channel insertion loss | dB | 1 |
| Angle of incidence | ° | 13.5°±0.2 |
| IL uniformity | dB | ≤0.6 |
| Beam pitch | Mm | 1.1±0.03 |
| Adjacent channel isolation | dB | 25 |
| Non-adjacent channel isolation | dB | 35 |
| Polarization dependent loss | dB | ≤0.25 |
| Return loss | dB | 45 |
| Parallel of all beams | ° | ≤0.2 |
| Operating temperature | °C | -20 ~ +70 |
| Storage temperature | °C | -40 ~ +85 |
| Dimension (L*W*H) | mm | 5.31*4.6*1 |
