Future Optics' isolator has low insertion loss and high isolation. These products utilize hermetic and all glass assemble technology to provide excellent performance and reliability. Our isolator series are GR-1221 and GR-1209 qualified.
Feature:
● High Isolation & Return Loss
● Low Insertion Loss
● Low Polarization Sensitivity
● Optical Path Epoxy Free
Application：
● Fiber optic Amplifiers(EDFA)
● CATV Fiber Optic Links
● Fiber optic Systems Testing
● Fiber Optic Lan Systems
● Telecommunications
技术指标：
Parameter | Unit | Single Stage | Dual Stage | ||
P Grade | |||||
Operating Wavelength | nm | 1310 or 1550 or Customized | |||
Typical Isolation (@23℃) | Min | dB | 40 | 56 | |
Isolation (@23℃) | Min | dB | 30 | 45 | |
Insertion Loss | Typical | dB | 0.35 | 0.5 | |
Max | dB | 0.5 | 0.7 | ||
Return Loss (In/Out) | Min | dB | 60/55 | 60/55 | |
PDL | Max | dB | 0.05 | 0.05 | |
PMD | Max | ps | 0.2 (0.05 available upon request) | 0.05 | |
Bandwidth | nm | ±15 | ±30 | ||
Operating Temperature | ℃ | -40 to +75 | |||
Storage Temperature | ℃ | -40 to +85 | |||
Fiber Type | / | 250um Bare fiber or 0.9mm Loose tube | |||
Fiber Length | m | 1 meter each end | |||

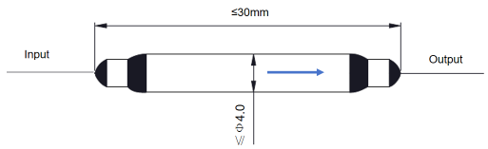

Package Dimension | For 250µm, 900µm | mm | ≤Φ4.0xL30，Φ5.5xL34 | ||
Power Handling | mW | 300 | |||
