Future Optics‘16ch 1271-1571nm Unilateral Fiber Outlet, Free-Space, CWDM Mux Demux device has a small footprint of 25*22.8*6.5mm and 1.6 dB low insert loss. Based on TFF technology and Free-space technology, taking advantage of optical path Zig-Zag design of multi-layers structure and all glass structure, Future Optics’ patent Ultra Compact CWDM devices are of ultra-small size, ultra-low insert loss, ultra-high reliability and wide operating temperature range, in comparing with Three-Port cascaded filters CWDM and Compact CWDM.
Future Optics' 16CH Ultra-Compact Coarse Wavelength Division Multiplexer (16CH UC-CWDM) Mux Demux device is a new version of 16 channels CWDM mux demux device with ultra compact footprint dimension of 25*22.8*6.5mm and extremely low insert loss of 1.6dB .
Based on thin film filter and Free-Space technology, taking advantage of patented design of multi-layers optical structure and metal laser welding micro-optics packaging process, Future Optics provides high quality16 channels UC-CWDM mux demux devices with wide channel bandwidth, low insertion loss, high precision center wavelength, wide operating temperature range and flexible channel configuration.
Future Optics’ miniature style housing CWDM is the smallest in its class, a new 16 CH UC-CWDM device measures 25mm long by 22.8mm wide by 5.95 mm thick. This makes it ideal for closely spaced board mounting or for direct use in 0.25inch high splice trays, where space is at a premium.
Features
Low insertion loss.

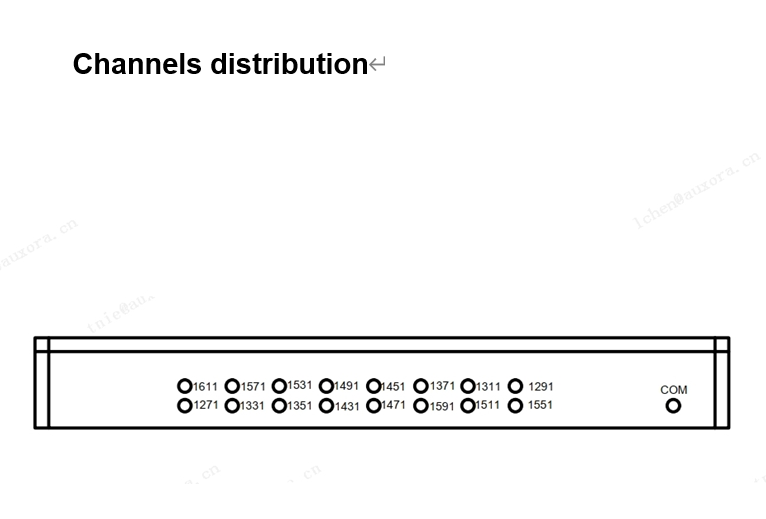

Unilateral fiber outlet.
High wavelength accuracy
Excellent thermal stability
Industrial temperature operation
Telcordia GR-1221 and GR-1209
Applications:
CWDM system
CWDM transceiver
PON networks
Telecom networks
Broadband networks
Science and lab

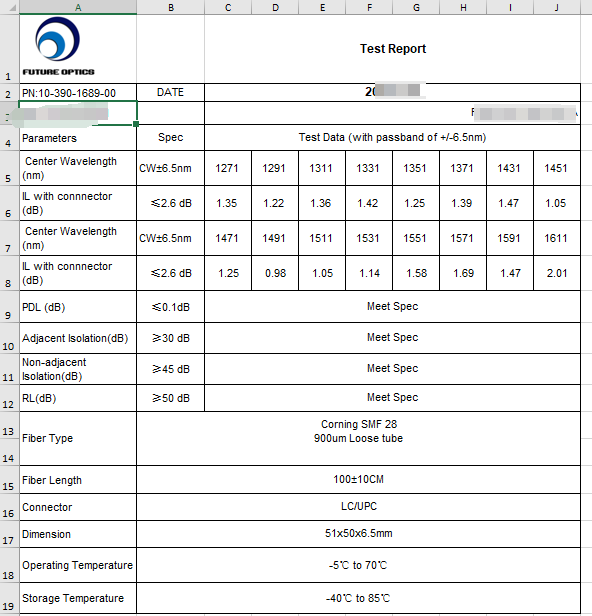

Specifications:

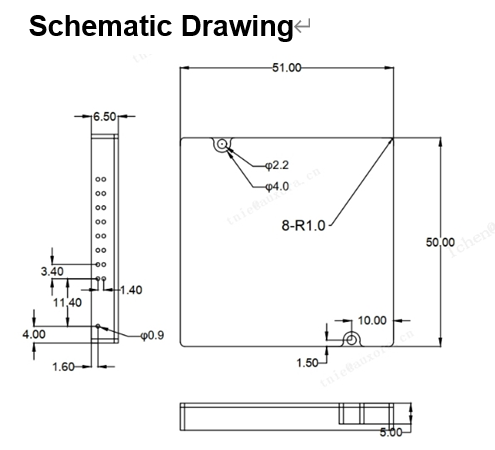

Parameter | Unit | Specifications | |
Channel number | ch | 16 | |
Channel Center Wavelengths | nm | 1271~1571 or 1311~1611 | |
Operating Wavelength | nm | 1260~1620 | |
Channel Spacing | nm | 20 | |
Channel Passband | nm | lc ± 6.5 | |
Insertion Loss (Max) | dB | <1.6 | |
Insertion Loss (Typical) | dB | <1.5 | |
Wavelength Thermal Stability | nm/℃ | ≤0.002 | |
Ripple over Pass Band | dB | <= 0.5 | |
Isolation | Adjacent Channel | dB | >= 30 |
Non-Adjacent Channel | dB | >= 45 | |
Polarization Dependent Loss | dB | <= 0.2 | |
Polarization Mode Dispersion | ps | <= 0.2 | |
Directivity | dB | >= 55 | |
Return Loss | dB | >= 45 | |
Footprint Dimension | mm | 25x22.8x6.5 | |
Fiber | 250um Corning Clear Curve Fiber, Or 0.9mm loose tube | ||
Operating Conditions
Parameter | Unit | Specifications |
Maximum Power Handling | mw | 500 |
Operation Temperature | °C | -40~ +85 (-40 to 185°F) |
Operation Humidity | %RH | 5 to 90%RH Not condensed |
Storage Temperature | °C | -40 ~ +85 (-40 to 185°F) |
Storage Humidity | %RH | 0 to 95%RH Not condensed |
Tensile strength | N | >5 |
