富光科技TIWDM（Tap+Isolator+WDM Hybrid）器件是一种集成了波分复用（WDM）、隔离器（Isolator）以及分光探测器（Tap）的光无源器件，广泛应用于EDFA、泵浦激光器。该器件具有插入损耗低、封装尺寸紧凑等特点。
富光科技TIWDM（Tap+Isolator+WDM Hybrid）器件是一种集成了波分复用（WDM）、隔离器（Isolator）以及分光探测器（Tap）的光无源器件，广泛应用于EDFA、泵浦激光器。该器件具有插入损耗低、封装尺寸紧凑等特点。
特点/Feature：
•工作波长范围宽 Wide operating wavelength range
•低插入损耗 Low insertion loss
•高隔离度通道 High channel isolation
•极小的 PDL & PMD Extremely small PDL & PMD
•优异的环境稳定性和可靠性 Excellent environmental stability and reliability
应用/Application：
•光纤放大器(EDFA）Optical Fiber Amplifier (EDFA)
•光纤仪器 Optical fiber instrument
•发射器与光纤激光器 Emitters and fiber lasers
•实验室研发 Laboratory Research and Development
•有线电视光纤链路 Cable TV fiber optic link
技术指标/Specification：
Parameter | Unit | Parameter | |||
Type | / | Single Stage | Dual Stage | ||
Signal Operation Wavelength (C-band) | nm | 1528~1564 | |||
Pump Channel Wavelength Range | nm | 965~1000 | |||
Isolation (over signal wavelength range @23℃, all SOP) | dB | ≥30 | ≥42 | ||
Wavelength Isolation (3 to1 @ λ signal) | dB | ≥15 | |||
Wavelength Isolation (1 to 2 or 2 to 1 @ λ pump) | dB | ≥30 | |||
Insertion Loss (over signal wavelength range @23℃, all SOP) | Pump | dB | ≥0.6 | ||
Signal | dB | ≤1.2 | ≤1.3 | ||
1% | dB | 19.0~21.0 | |||
2% | dB | 16.2~18.0 | |||
5% | dB | 12.2~14.0 | |||
Temperature Dependent Loss | dB | ≤0.25 | ≤0.3 | ||
Wavelength Dependent Loss | dB | ≤0.5 | |||
Return Loss | dB | ≥50 | |||
Directivity | dB | ≥50 | |||
PDL | dB | ≤0.15 | ≤0.2 | ||
PMD | Ps | ≤0.25(0.05) | ≤0.05 | ||
Maximum Power Handling | mW | 300 | |||
Operating Temperature | ℃ | -5~+75 | |||
Storage Temperature | ℃ | -40~+85 | |||

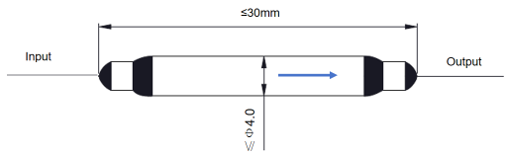

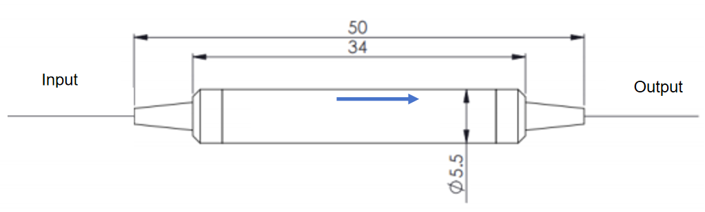

Package Dimension | For 250µm, 900µm | mm | Φ4.0xL30，Φ5.5xL34 | ||
Fiber Type | Corning HI1060 fiber at common/pump port | ||||
Corning SMF-28E+(LL) fiber at signal port & tap port | |||||
